BF-TR925R
DMR AD HOC REPEATER / ENCRYPTED BASE RADIO SET
BF-TR925R
DMR AD HOC REPEATER / ENCRYPTED BASE RADIO SET
In emergency situations where there is no network coverage, Ad Hoc portable networks will be very helpful. As a member of BF-TR925 family, BelFone TR925R(MC-N) is a manpack or vehicle mounted DMR Ad Hoc repeater designed for scenarios where no radio coverage available to realize multi-cascade jump and last mile communication. With features of fast deployment, seamless communication and flexible networking, it works as both a radio, repeater, and mesh node, which is greatly fit for search and res
Inquiry
Inquiry
Highlights
Versatile and Ease of Fixing

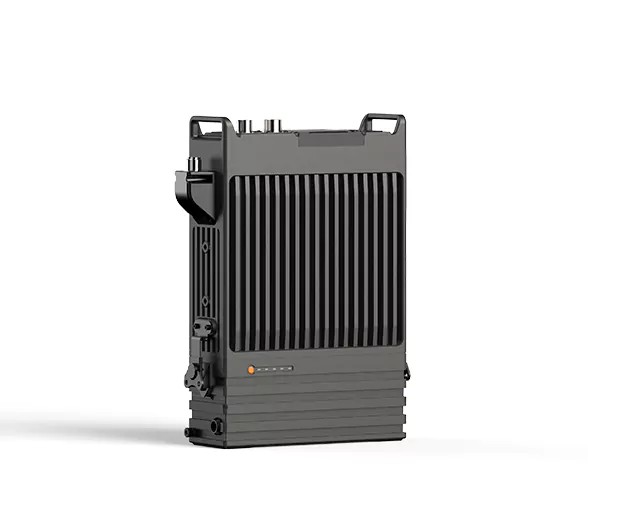

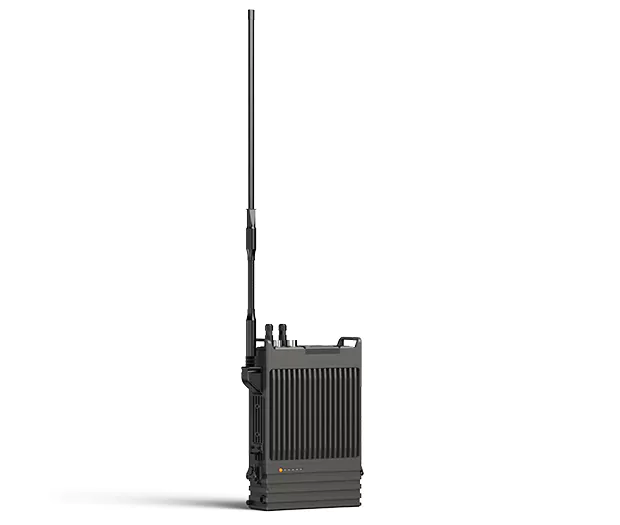

Manpack mounted
Put a battery and manpack with holder for portable repeater, manpack can put extra battery for emergency backup useModular hardware design
Modular hardware design for easy maintenance and repairing, only change the faulty modules without changing the complete repeater if faulty foundedVehicular/Desktop mounted
Put a vehicular hub with AC/DC power supply and vehicular antenna, repeater will work as vehicular repeater/base radio by DC 13.8V(±15％) or AC(80-264V)Versatile Connectivity to Suitable for Challengeable Situations
- 4G wireless communications link
- Satellite communication link
- Narrowband communication link
- IP connectivity for multi sites connection
ID Authentication for Air Interface
Only ID-authenticated legitimate terminals can activate repeaters for voice and data service forwarding, thus avoiding illegal users from stealing and occupying channel resources and affecting normal communications.Ad Hoc Networking
Highly reliable network: Based on mobile wireless Ad-HoC network, the device is capable of creating and joining networks to deploy the communication system on power up. And signals will switch to another node automatically while one node within a network disconnected or malfunctioned, thus to ensure link continuity.- Ad Hoc networking on a 25KHz bandwidth frequency, up to 32 jumps,
- compatible with regular DMR radios.
- IP68 for water and dust protection.
- Rouge and robust, designed as per MIL STD 810F/G.
- Advanced privacy with AES256/ARC4 digital encryption.
- Flexible and power self-adaptive by different installation.
- - Manpack with battery mode (with manpack kit, output power 3-15W).
- - Desktop/vehicular mode (with AC/DC mounting kit, output power 5-25W).
- IP connectivity for multi sites connection (with specialized Ethernet cable).
- Full duplex communication as DMR base radio (with remote control microphone).
- Inbuilt GPS, convenient position tracking(optional).
- Self-destructing function to turn data to dust on command in case of information leakage.
- Power-on password to ensure information security.
| 1 | Slot 1 working indicator |
| 2 | Slot 2 working indicator |
| 3 | Power Switch/Power indicator |
| 4 | Network indicator |
| 5 | ACC Port |
| 6 | LAN port |
| 7 | Palm mic port |
| 8 | Program port |
| 9 | Antenna Port1 |
BF-TR925R
-
Multi Working Mode, Highly Integrated

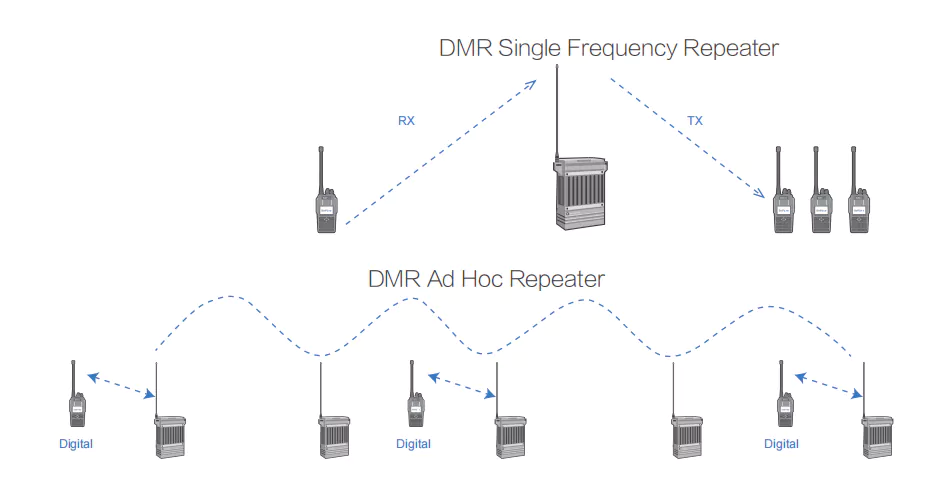

DMR Ad Hoc repeater; DMR single frequency repeater; DMR base radio (DMR Tier I, II); Analog base radio; PSTN gateway (working with BF-TC981) -
DMR and Analog Base Radio / PSTN Gateway

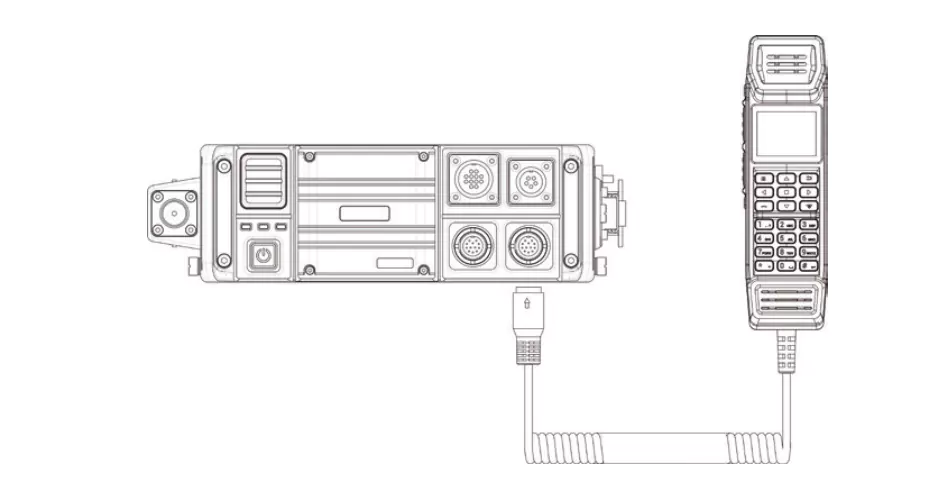

Connect with remote controller microphone BF-TC981 to enjoy PTT function as a DMR or analog radio; Support 4G SIM card to realize public network phone call. -
Flexible and Reliable Networking, Fast Deployment

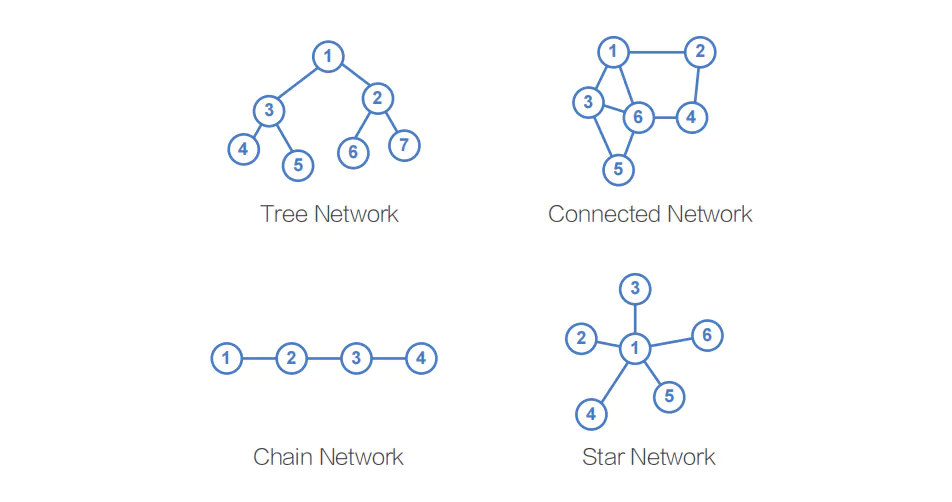

Multiple networking deployment: chain, tree, star, connected network etc., thus users can choose different networking based on actual environment.
